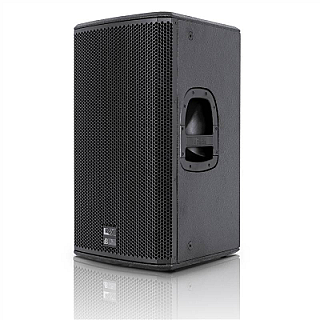

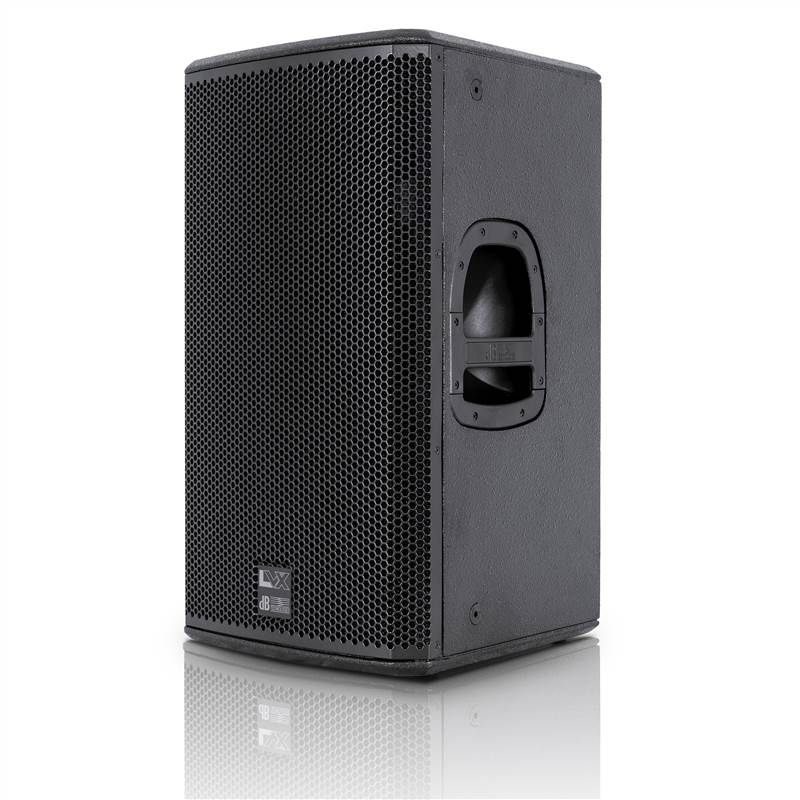

LVX 12

From: dBTechnologiesIDDBTE-8V1S

The LVX 12 is a 2-way active point source speaker featuring a 12" low-frequency driver and 1" high-frequency compression driver. It delivers 800W program power via Class-D Digipro G2 amplification, producing a maximum SPL of 127dB. Frequency response spans 62-19,000Hz (-6dB). The enclosure offers 90×40° constant directivity with a rotatable horn for flexible positioning. Weighing 17kg with 45° monitor angle, it includes integrated DSP processing and multiple mounting options including pole cup and M10 rigging points. The 12mm plywood construction ensures road-worthy durability for live and installed applications.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:dBTechnologies

Audio Speaker Type:Point Source Loudspeakers, Stage Monitors

Amplification Type:Active / Self-Powered

Max. SPL:127 dB

Nominal Horizontal Coverage:90 º

Nominal Vertical Coverage:40 º

LF Driver Diameter:12 "

Amount of LF Speakers:1

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP, Rotatable Horn

Amount of Speakers in Device:1

Components:1x 1" HF driver, 1x 12" LF driver

RMS Power Handling:400 W

Frequency Response:62–19 000 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Pole Mounted, M10 Points, Other Rigging Methods

Housing Colour:Black

Cabinet Construction:Multiplex plywood

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:1030102210C

Product Series:LVX

Optional Accessories:SK-36TT, WB-L12V, WB-L12H mounting brackets

Included Accessories:Top handle, 2 side handles, D36mm pole mount cup

Weight:17 kg

Dimensions

Width:36 cm

Length:36 cm

Height:61 cm
