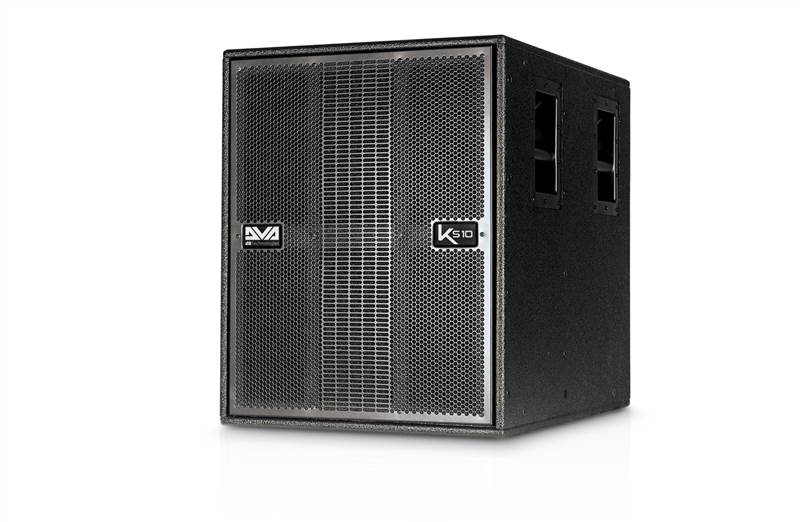

DVA KS10

From: dBTechnologiesIDDBTE-2ZSV

The DVA KS10 is a flyable, semi-horn loaded active subwoofer featuring a single 18" woofer driven by a Class-D Digipro G3 amplifier. It delivers 900W RMS power, achieving maximum SPL of 134 dB. With a frequency response of 41-120 Hz (-10 dB), it's designed for both ground stacking and flying applications. The unit includes balanced XLR inputs/outputs, onboard DSP for delay adjustment (up to 4.5 ms), phase inversion switch, and selectable low-pass filter settings (90/120 Hz). Constructed with multiplex plywood, this 43.4 kg subwoofer offers versatile installation options for professional audio applications requiring powerful low-frequency reproduction.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:dBTechnologies

Audio Speaker Type:Subwoofers

Amplification Type:Active / Self-Powered

Max. SPL:134 dB

LF Driver Diameter:18 "

Amount of LF Speakers:1

Physical Digital Audio Connectors:XLR (3-pin)

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:1

Components:1 x 18" LF driver with 4" voice coil

RMS Power Handling:900 W

Frequency Response:41–120 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Ground Stacked, Pole Mounted, Flyware Compatible

Housing Colour:Black

Typical Power Consumption of Active Speakers:900 W

Cabinet Construction:Multiplex plywood

Power Consumption Typical:900 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:1030102400C

Product Series:DVA

Optional Accessories:DRK-10, DRK-20, DS-2, DS2-S, SWK-18

Compatible with:DVA K5

Weight:43.40 kg

Dimensions

Width:51.50 cm

Length:72 cm

Height:64 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
