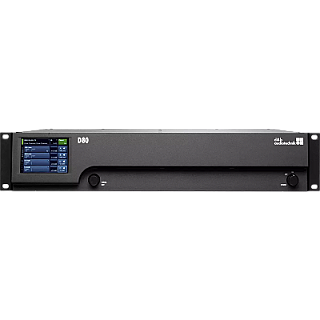

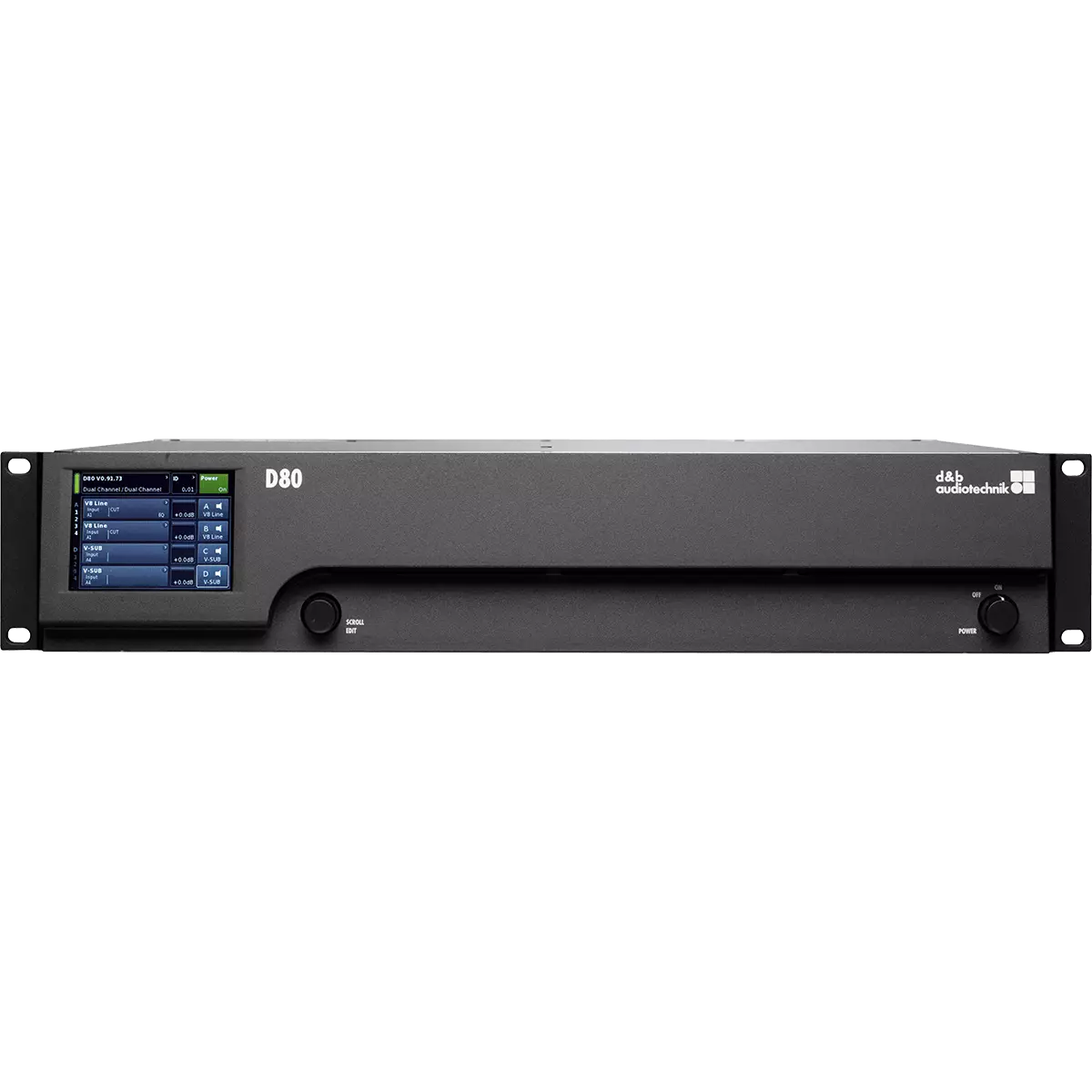

D80

From: d&b audiotechnikIDD&BA-P3AZ

The d&b D80 is a 2 RU, four-channel amplifier delivering 4 x 4000 W into 4 Ω with Class D technology and active Power Factor Correction. It features a color TFT touchscreen interface and incorporates DSP capabilities including 2 x 16-band equalizers with parametric, asymmetric, shelving or notch filtering options. The amplifier provides user-definable delay settings up to 10 seconds per channel and includes LoadMatch function for electrical compensation of loudspeaker cables. With NL4 speaker outputs plus centered NL8 connector, it interfaces via analog XLR and digital AES3 inputs. The D80 integrates into d&b Remote network systems via CAN-Bus and Ethernet with OCA/AES70 protocol support.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:d&b audiotechnik

Amplifier Class:Class D

Speaker Output Channels:4 CH

Power Output per Channel (8 Ohm):2 000 W

Integrated DSP:Yes

Amplifier Features:DSP integrated

Speaker Output Connectors:speakON NL4, speakON NL8

Audio Network Protocol:AES67, Dante

Type of Amplifier:Power Amplifiers

Power Output per Channel (4 Ohm):4 000 W

Total Device Power Output (8 Ohm):8 000 W

Output Power Distribution:Equal Power per Channel, Selectable Output Mode

Physical Audio Input Connectors:XLR (3-Pin)

Analog Input Channels:4

Digital Input Channels:4

Physical Digital Audio Connectors:Ethernet (RJ45), XLR (3-pin)

Silent Operation:No

Rack mounting:2 RU rackmountable

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Product Series:D-Series

Manufacturer Code:Z2710

Optional Accessories:DS10 Audio network bridge, MC24 multicore, Touring racks (3 x and 6 x D80), DS10 Rack upgrade kit

Compatible with:All current d&b loudspeaker setups

Weight:19 kg

Dimensions

Width:48.26 cm

Length:53 cm

Height:8.89 cm
