VANTEC-18
From: DAS AudioIDDASA-W8HJ
VANTEC-18
From: DAS AudioIDDASA-W8HJ

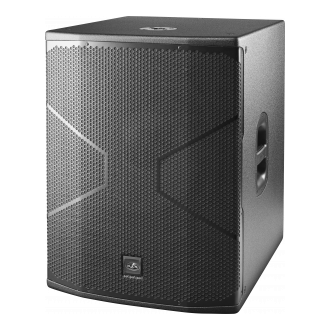

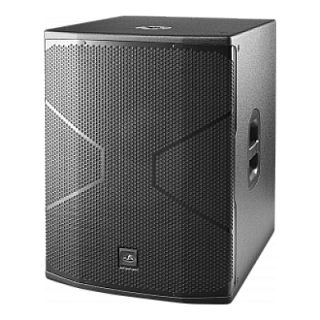

The VANTEC-18 is a passive bass-reflex subwoofer system featuring the legendary 18LX low-frequency transducer with a 4-inch voice coil, mounted as a direct radiator. Constructed with birch plywood and ISO-flex black finish, it delivers a frequency range of 45 Hz to 138 Hz (-10 dB) with maximum peak SPL of 134 dB at 1 meter. Rated for 1000 W RMS power handling at 8 ohms impedance, the system connects via speakON NL4 connectors. Designed for biamped applications, it features ground-stackable capability, a top-mounted pole socket for full-range systems, and M10 rigging points. Protected by a rugged steel grille, the VANTEC-18 includes two bar handles for portability in live sound applications.
Product Details
Brand:DAS Audio
Audio Speaker Type:Subwoofers
Amplification Type:Passive
Max. SPL:134 dB
Nominal Horizontal Coverage:360 º
LF Driver Diameter:18 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Amount of Speakers in Device:1
Components:18LX
RMS Power Handling:1 000 W
Frequency Response:45–138 Hz
Nominal Impedance (Ohm):8
Speaker Mounting Options:Ground Stacked, Pole Mounted, M10 Points
Housing Colour:Black
Cabinet Construction:Birch Plywood
IP Rating:IP20
Manufacturer Code:10 431 110
Product Series:VANTEC
Optional Accessories:ANL-2, FUN-VT18, SPK4-1, SPK4-10, SPK8-20, TRD-6, TRD-7
Weight:35 kg
Dimensions
Width:54.50 cm
Length:65.50 cm
Height:72 cm
