MATRIX-66
From: DAS AudioIDDASA-W4ZZ
MATRIX-66
From: DAS AudioIDDASA-W4ZZ

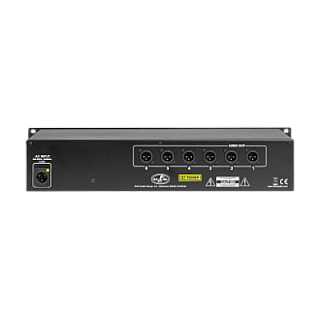

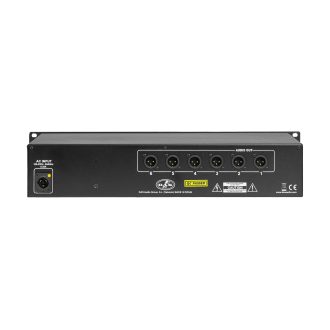

The MATRIX-66 is a 2U rack-mounted signal distribution unit for ARA series sound systems. It features six balanced analog input channels via female XLR connectors and six analog output channels via male XLR connectors. The device incorporates a 1 Gbit Ethernet switch with 8 ports for distributing both analog audio signals and ALMA control data. It provides six etherCON outputs for audio and data distribution to connected ARA systems. Front panel controls allow for signal duplication across multiple outputs. Powered by universal mains (90-250 VAC), the unit consumes 30 W and weighs 3.4 kg with dimensions of 8.8 x 48.3 x 27.1 cm.
Product Details
Brand:DAS Audio
Signal Distribution & Interface Device Type:Audio Splitter
Analog Input Channels:6
Digital Input Channels:0
Analog Output Channels:6
Digital Output Channels:6
Audio Network Protocol:None
PoE (Power over Ethernet):No
Transformer Isolated:No
Total Input Channels (Analog & Digital):6
Physical Audio Input Connectors:XLR (3-Pin)
Physical Digital Audio Connectors:Ethernet (RJ45)
Physical Audio Output Connectors:XLR (3-Pin)
Product Series:ARA Series
Manufacturer Code:20 503 151
Control Methods:ALMA and front-panel switches
Rack mounting:2U, 19-inch rack mount
Compatible with:ARA series sound systems
Power Consumption Typical:30 W
Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight:3.40 kg
Dimensions
Width:48.30 cm
Length:27.10 cm
Height:8.80 cm
