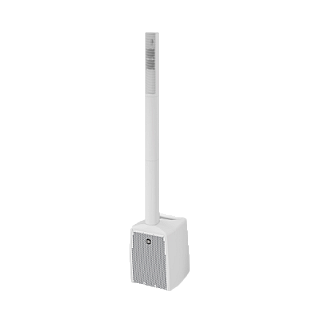

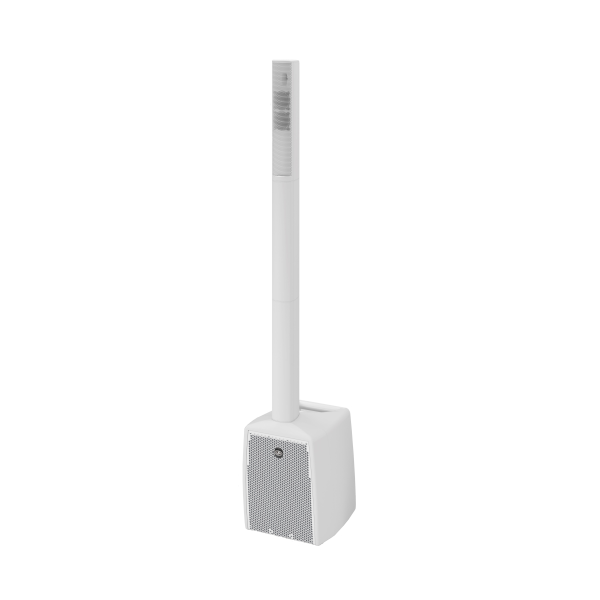

Altea duo-20A

From: DAS AudioIDDASA-JZ3Z

The Altea duo-20A is a 3-way active portable column system with wooden subwoofer designed for mobile applications including corporate events, conferences, and live music. Featuring a Class D amplifier delivering 1000W continuous/2000W peak power with universal power supply (115V/230V), it contains two 10" LF drivers, four 3" MF drivers with neodymium magnets, and an M27N 1" compression driver coupled to a 100°×50° horn. The integrated DSP includes DAScontrol technology with LCD interface, offering multiple acoustic presets and three input channels. With a frequency response of 37Hz-20kHz and maximum SPL of 127dB, the system weighs 31kg and features polypropylene/birch plywood construction.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:DAS Audio

Audio Speaker Type:Subwoofers, Column Loudspeakers (Line Radiators)

Amplification Type:Active / Self-Powered

Max. SPL:127 dB

Nominal Horizontal Coverage:100 º

Nominal Vertical Coverage:50 º

LF Driver Diameter:10 "

Amount of LF Speakers:2

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:7

Components:2x10" LF (10MG), 4x3" MF (3PN), 1x1" HF (M-27N)

RMS Power Handling:1 000 W

Frequency Response:37–20 000 Hz

Power Options for Active Speakers:120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Pole Mounted

Housing Colour:Black

Typical Power Consumption of Active Speakers:345 W

Cabinet Construction:Polypropylene + Birch Plywood

Power Consumption Typical:345 W

Power Options:120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:10 435 061

Product Series:Altea Duo

Optional Accessories:BAGPACK-DUO (protective cover), FUN-DUO20, PL-ALTEA-DUO-20A (transport dolly)

Weight:31 kg

Dimensions

Width:36 cm

Length:44.50 cm

Height:200 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
