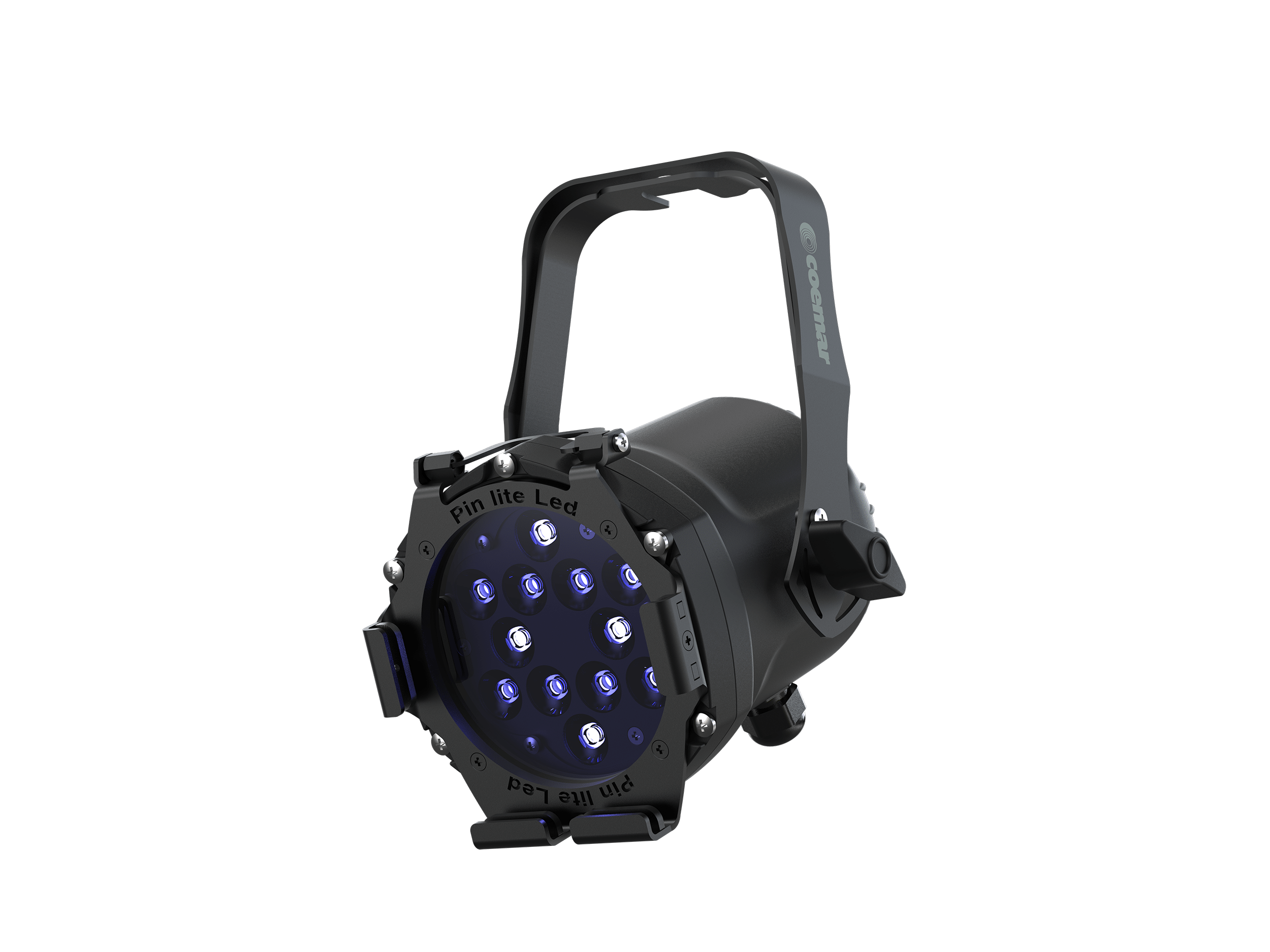

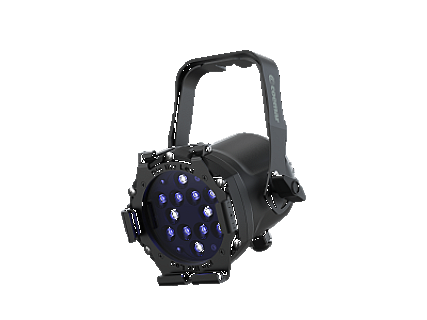

PinLite Led T

From: Coemar LightingIDCEMA-Z9W4

The PinLite Led T is a fixed white CCT 3200K wash light designed for broadcast and theatre installations. Featuring convection cooling with no fans, it ensures silent operation. The fixture utilizes 12 tungsten LEDs with L80 rating for 50,000 hours to 80% output. It offers electronic dimming and flicker-free operation controlled via DMX from 600 to 20,000 Hz. With interchangeable optics (12°, 30°, 13° x 40°, 50°, 110°), it achieves variable coverage. The double yoke enables easy ground standing or truss hanging, while the aluminum enclosure ensures long-term durability. It operates on 90-250V with 25W maximum power consumption and offers IP20 or IP65 protection ratings.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Coemar Lighting

Lighting Fixture Type:Stroboscopes, Wash Light

Light Source Wattage:25 W

Light Source Type:Warm-White LED Light Engine

Highest Specified CRI Value:90

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:3 200 K

Fixture Output Colour Temperature Range:3 200 K

Beam Angle Options:Variable with Additional Lenses

Beam Angle Range (w/o accessories):12–110 º

Horizontal Beam Angle Range:12–110 º

Vertical Beam Angle Range:12–110 º

Pole Operation:No

IP Rating:IP65

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:Yes

Video Mapping:No

Control and Communication Standards:DMX512-A, sACN

Application Range:Small (up to 10 m throw)

Housing Colour:Black

Strobe Frequency:600 to 20,000 Hz

Power Consumption Typical:25 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:1.80 kg

Dimensions

Width:14.09 cm

Length:16.89 cm

Height:12.85 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Coemar Lighting
Lighting Fixture Type	Stroboscopes, Wash Light
Light Source Wattage	25 W
Light Source Type	Warm-White LED Light Engine
Highest Specified CRI Value	90
Colour Creation Method	LED Colour Creation
Native Light Source Colour Temperature	3 200 K
Fixture Output Colour Temperature Range	3 200 K
Beam Angle Options	Variable with Additional Lenses
Beam Angle Range (w/o accessories)	12–110 º
Horizontal Beam Angle Range	12–110 º
Vertical Beam Angle Range	12–110 º
Pole Operation	No
IP Rating	IP65
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	Yes
Video Mapping	No
Control and Communication Standards	DMX512-A, sACN
Application Range	Small (up to 10 m throw)
Housing Colour	Black
Strobe Frequency	600 to 20,000 Hz
Power Consumption Typical	25 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	1.80 kg
Dimensions
Width	14.09 cm
Length	16.89 cm
Height	12.85 cm
