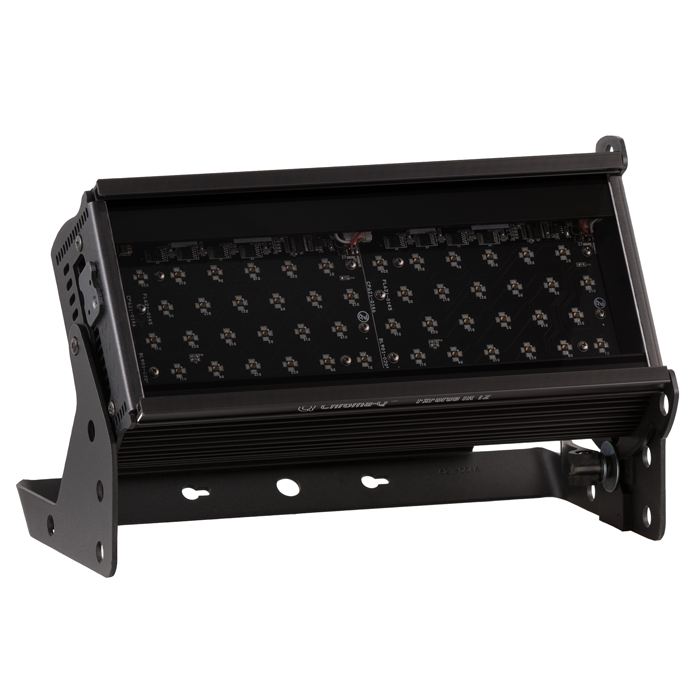

FxForce IR™ 12

From: Chroma-QIDCHRM-Y3C4

The Chroma-Q® FxForce IR™ 12 is an infrared lighting fixture engineered for infrared filming and night-mode video applications. Utilizing 48 IR LEDs (940nm wavelength) across two LED engines, it delivers a smooth, uniform wash with theatrical-grade dimming. Designed for practical mounting on floors, walls, or truss (335mm length), it features a built-in power supply, PowerCon connectivity for daisy-chaining, and rugged aluminum construction. With 110W maximum power consumption, 0–40°C operating temperature, and IP20 rating, it targets film/TV production and specialized imaging where silent visible-light operation is critical. Lamp life is rated L70 at 50,000 hours.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Chroma-Q

Lighting Fixture Type:UV (Ultraviolet, Blacklight), Wash Light

Light Source Wattage:110 W

Light Source Type:Single Colour LEDs

Colour Creation Method:None

Beam Angle Options:Static

Pole Operation:No

IP Rating:IP20

No. of Fixed Colour Wheels:0

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:DMX512-A

Application Range:Small (up to 10 m throw)

Housing Colour:Black

Manufacturer Code:CHFXIR12

Power Consumption Typical:110 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:4.40 kg

Dimensions

Width:33.50 cm

Length:19 cm

Height:21.90 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Chroma-Q
Lighting Fixture Type	UV (Ultraviolet, Blacklight), Wash Light
Light Source Wattage	110 W
Light Source Type	Single Colour LEDs
Colour Creation Method	None
Beam Angle Options	Static
Pole Operation	No
IP Rating	IP20
No. of Fixed Colour Wheels	0
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	No
Video Mapping	No
Control and Communication Standards	DMX512-A
Application Range	Small (up to 10 m throw)
Housing Colour	Black
Manufacturer Code	CHFXIR12
Power Consumption Typical	110 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	4.40 kg
Dimensions
Width	33.50 cm
Length	19 cm
Height	21.90 cm
