Ground Stack Kit
From: CHAUVET ProfessionalIDCHAU-JZ6G
Ground Stack Kit
From: CHAUVET ProfessionalIDCHAU-JZ6G

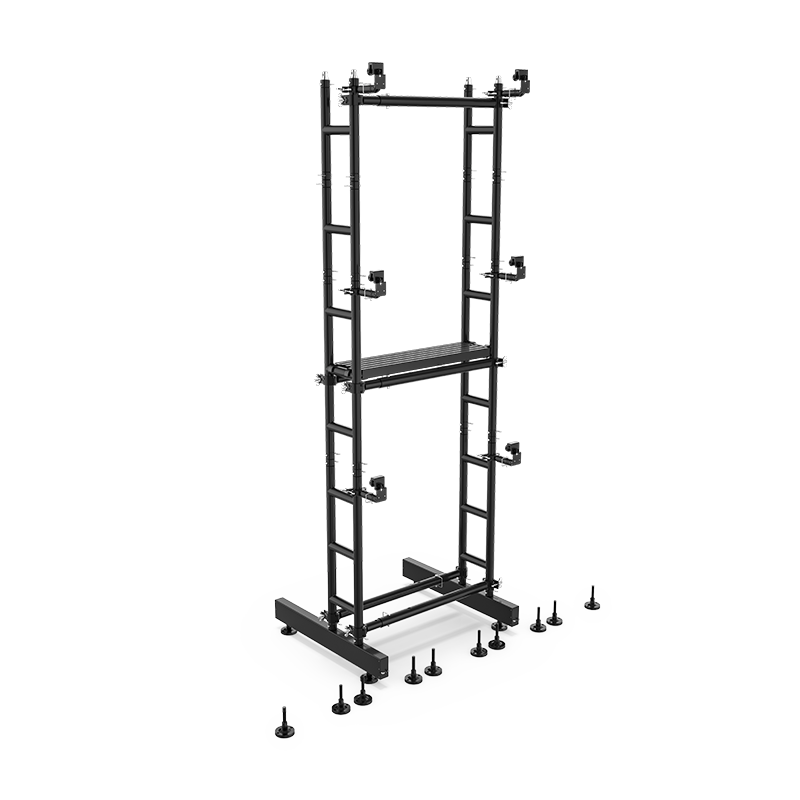

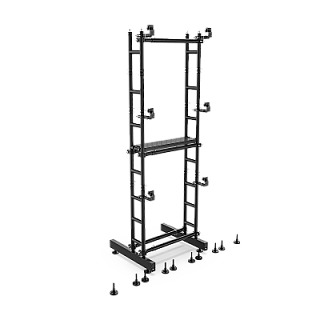

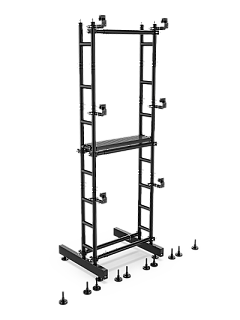

Chauvet Professional's Ground Stack Kit is a modular ground support system designed for stacking REM1, REM3IP, F2, F3/F3X, F4IP/F4XIP, and F5IP video panels. The aluminum and steel construction supports flat, convex (2.5° and 5°), and concave (5° and 10°) video wall configurations. Engineered for walls ranging from 1.5-2.0 m wide and up to 3.0 m tall, it features a climbable platform for rigging taller installations. The system is scalable by combining multiple kits for wider configurations and maintains IP65 rating for temporary outdoor use. Maximum person weight capacity is 113.4 kg, with specific ballast requirements per meter of height (68-124.7 kg). Note that Dual Function Rig Bars are required but sold separately.
Product Details
Brand:CHAUVET Professional
Load Capacity:113.40 kg
Max Height:3 m
Maximum Load capacity:113.40 kg
Weight:79.40 kg
Dimensions
Width:200 cm
Height:300 cm
Included Accessories:Customized road case (pre-packed), 2 Floor Bars, 6 PAMs, 5 Ladder pipes with clamp, 4 x 0.5M Truss, 4 x 1M Truss, 8 TR16 screw jacks, 1 Climbing Platform, 13 M12 F-series cabinet screws, 6 REM Brackets, 13 truss double sided connectors AL6063, 37 Truss pins with clip, 1 x 6" bubble level
Optional Accessories:Dual Function Rig Bars for REM or F-series Video Panels
Tower Material :aluminum and steel construction
