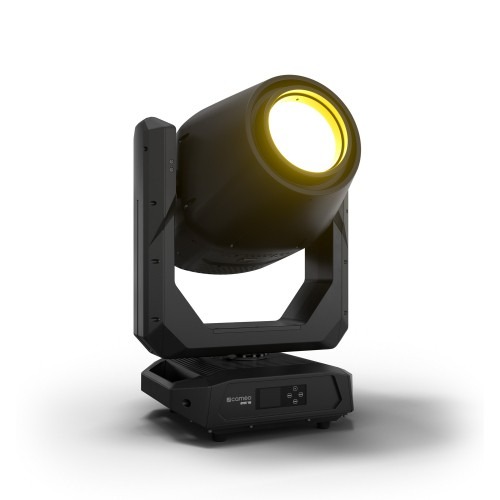

OTOS H5

From: CameoIDCAME-V7RH

The OTOS® H5 is an IP65-rated hybrid moving head with 19,000 lm output from a 480W discharge lamp. It offers 2°-42° beam angle via high-quality 135mm optics, CMY color mixing, plus 15 dichroic filters. Features include 27 gobos (8 rotating glass + 19 static), dual prisms, high CRI filter (>80) for color accuracy, and variable frost filter. Certified for outdoor use, it supports W-DMX™, DMX, and RDM protocols.

Used Equipment

Vendors

Used Sources

Rental

Vendor Location

Rental Sources

Product Details

Brand:Cameo

Moving Head Type:Hybrid, Spot / Profile, Beam

Light Source Type:Discharge Lamp

Lamp Model:Signify MSD Silver 480 W

Light Source Wattage:480 W

Light Output at Native Colour Temperature:19 000 lm

Colour Creation Method:Fixed Colour Filters, CMY Filter Mixing

Native Light Source Colour Temperature:6 800 K

Fixture Output Colour Temperature Range:6 800 K

Colour Correction :Digital Colour Correction

Highest Specified CRI Value:80

Frost Effects:Variable Frost Effect

Beam Angle Range (w/o accessories):2–42 º

IP Rating:IP65

No. of Fixed Colour Filters:15

No. of Fixed Colour Wheels:1

No. of Fixed Gobos:19

No. of Fixed Gobo Wheels:1

No. of Rotating Gobos:8

No. of Rotating Gobo Wheels:1

No. of Animation Wheels:1

No. if Prisms:2

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Beam Iris:No

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Control and Communication Standards:Art-Net, DMX512-A, sACN

Power Consumption Typical:700 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Manufacturer Code:CLOTOSH5

Weight:33 kg

Dimensions

Width:45.64 cm

Length:33.47 cm

Height:74.88 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Cameo
Moving Head Type	Hybrid, Spot / Profile, Beam
Light Source Type	Discharge Lamp
Lamp Model	Signify MSD Silver 480 W
Light Source Wattage	480 W
Light Output at Native Colour Temperature	19 000 lm
Colour Creation Method	Fixed Colour Filters, CMY Filter Mixing
Native Light Source Colour Temperature	6 800 K
Fixture Output Colour Temperature Range	6 800 K
Colour Correction	Digital Colour Correction
Highest Specified CRI Value	80
Frost Effects	Variable Frost Effect
Beam Angle Range (w/o accessories)	2–42 º
IP Rating	IP65
No. of Fixed Colour Filters	15
No. of Fixed Colour Wheels	1
No. of Fixed Gobos	19
No. of Fixed Gobo Wheels	1
No. of Rotating Gobos	8
No. of Rotating Gobo Wheels	1
No. of Animation Wheels	1
No. if Prisms	2
Dimmer Type	Electronically
Strobe Effect Type	Electronically
Beam Iris	No
Silent Operation	No
Video Mapping	No
Application Range	Medium (8 m - 25 m throw), Large (20 m - 40 m throw)
Control and Communication Standards	Art-Net, DMX512-A, sACN
Power Consumption Typical	700 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Manufacturer Code	CLOTOSH5
Weight	33 kg
Dimensions
Width	45.64 cm
Length	33.47 cm
Height	74.88 cm
