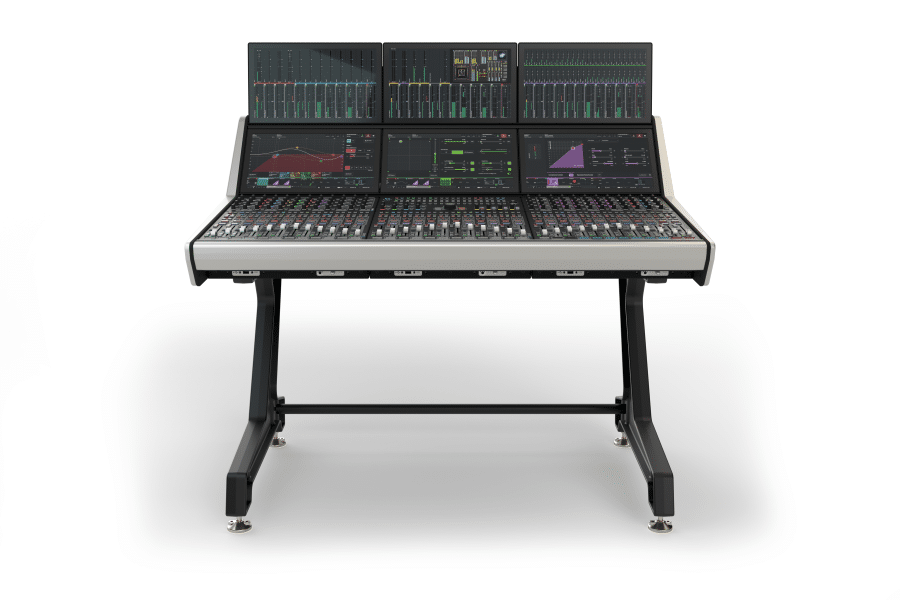

Argo S Reduced Height
From: Calrec AudioIDCALR-CD16
Argo S Reduced Height
From: Calrec AudioIDCALR-CD16
Argo S Reduced Height is Calrec's modular IP-native broadcast audio console designed for space-constrained environments. This variant maintains core functionality of the standard Argo S while optimizing physical dimensions. Built around ImPulse technology with DSP licensing up to 384 input channels, it features interchangeable control surface panels including faders, monitoring, and TFT displays. The console natively supports ST2110 networks with AES67 connectivity, maintaining compatibility with Hydra2 infrastructure via Calrec Gateways. It delivers immersive audio capabilities with comprehensive downmixing tools and provides browser-based remote control through Calrec Assist. The system supports flexible I/O through modular, fixed format, or Type R connectivity solutions.
Product Details
Brand:Calrec Audio
Console Configuration:Control Surface, Broadcast Console
Mixing Technology:Digital
Total Input Channels (Analog & Digital):384
Analog Input Channels:0
Digital Input Channels:384
Analog Output Channels:0
Digital Output Channels:384
Mix Buses Mono:2
Mix Buses Stereo:1
Amount of Faders:240
Audio Network Protocol:AES67, Ravenna
Analog Mic/Line Input Channels (Mono):0
Analog Stereo Input Channels:0
Analog Stereo Output Channels:4
Main Bus Format:Left, Center, Right, Surround (LCRS)
Phono Input Channels (Stereo):0
Matrix Buses Stereo:2
Audio Console Features:Equalizer for each channel, Motorised Faders, Remote Controllable
Aux Sends per Channel:8
Pre/Post Switch per Aux Send:Yes
Aux Buses Mono:32
Aux Buses Stereo:4
VCA/DCA Groups:8
Mute Groups:8
Physical Audio Input Connectors:XLR (3-Pin)
Physical Audio Output Connectors:XLR (3-Pin)
Physical Digital Audio Connectors:Wordclock BNC, Ethernet (RJ45)
Matrix Buses Mono:8
Supported Audio Formats:WAV, FLAC, Other
GUI:Calrec Assist (browser-based)
GPI:8 GPIO ports
Fader Resolution:10-bit
GPI Connector:Yes
Redundant Power Supply:Yes
Manufacturer Code:Argo S Reduced Height
Product Series:Argo
Power Consumption Typical:750 W
Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Optional Accessories:+16 Aux Booster License, ImPulse processing core, ImPulseV cloud processing, Modular I/O boxes, Fixed Format I/O boxes, Type R I/O boxes
Included Accessories:Control surface, TFT displays, faders, basic I/O connectivity
Weight:130 kg
Dimensions
Width:120 cm
Length:80 cm
Height:85 cm
