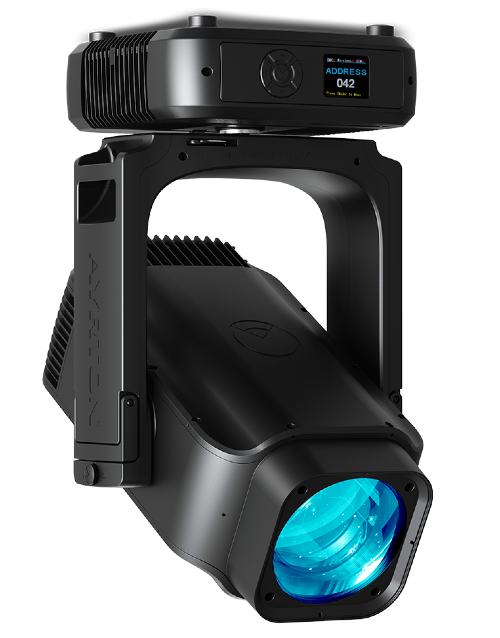

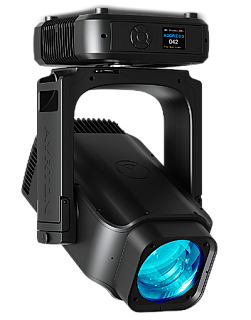

Rivale Profile

From: AyrtonIDAYRT-V9SE

The Ayrton Rivale Profile is an IP65-rated moving head fixture in the ULTIMATE series featuring a 430W LED light engine with 6500K native color temperature. It delivers 30,000 lumens output with a 13:1 zoom ratio (4°-52°) and 160mm front lens. The fixture incorporates continuous pan/tilt rotation, advanced CMY color mixing, variable CRI (70-86), and CTO color temperature control (2900K-6500K). With four positionable framing shutters (±90° rotation), a 15-blade iris, 15 glass gobos across two wheels, and dual prisms, it achieves exceptional optical performance while weighing only 30.8kg.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Ayrton

Moving Head Type:Spot / Profile

Light Source Type:Cold White LED Light Engine

Light Source Wattage:430 W

Light Output at Native Colour Temperature:30 000 lm

Colour Creation Method:Fixed Colour Filters, CMY Filter Mixing

Native Light Source Colour Temperature:6 500 K

Fixture Output Colour Temperature Range:2 900–6 500 K

Colour Correction :CTO Filter, variable (cold to warm), + Green Filter, fixed (add green)

Highest Specified CRI Value:86

Frost Effects:2 Frost Effects

Beam Angle Range (w/o accessories):4–52 º

IP Rating:IP65

No. of Fixed Colour Filters:6

No. of Fixed Colour Wheels:1

No. of Fixed Gobos:7

No. of Fixed Gobo Wheels:1

No. of Rotating Gobos:6

No. of Rotating Gobo Wheels:1

No. of Animation Wheels:1

No. if Prisms:2

Dimmer Type:Electronically

No. of Effects-Wheels:1

Strobe Effect Type:Electronically

Framing / Beam Shaping Module:4 Blades, Individually positionable Blades, Framing Module Rotation

Beam Iris:Yes

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Control and Communication Standards:RDM, MIDI, DMX512-A, sACN, OSC

Power Consumption Typical:700 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Manufacturer Code:12 321

Weight:30.80 kg

Dimensions

Width:36 cm

Length:31.60 cm

Height:67.60 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Ayrton
Moving Head Type	Spot / Profile
Light Source Type	Cold White LED Light Engine
Light Source Wattage	430 W
Light Output at Native Colour Temperature	30 000 lm
Colour Creation Method	Fixed Colour Filters, CMY Filter Mixing
Native Light Source Colour Temperature	6 500 K
Fixture Output Colour Temperature Range	2 900–6 500 K
Colour Correction	CTO Filter, variable (cold to warm), + Green Filter, fixed (add green)
Highest Specified CRI Value	86
Frost Effects	2 Frost Effects
Beam Angle Range (w/o accessories)	4–52 º
IP Rating	IP65
No. of Fixed Colour Filters	6
No. of Fixed Colour Wheels	1
No. of Fixed Gobos	7
No. of Fixed Gobo Wheels	1
No. of Rotating Gobos	6
No. of Rotating Gobo Wheels	1
No. of Animation Wheels	1
No. if Prisms	2
Dimmer Type	Electronically
No. of Effects-Wheels	1
Strobe Effect Type	Electronically
Framing / Beam Shaping Module	4 Blades, Individually positionable Blades, Framing Module Rotation
Beam Iris	Yes
Silent Operation	No
Video Mapping	No
Application Range	Medium (8 m - 25 m throw), Large (20 m - 40 m throw)
Control and Communication Standards	RDM, MIDI, DMX512-A, sACN, OSC
Power Consumption Typical	700 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Manufacturer Code	12 321
Weight	30.80 kg
Dimensions
Width	36 cm
Length	31.60 cm
Height	67.60 cm
