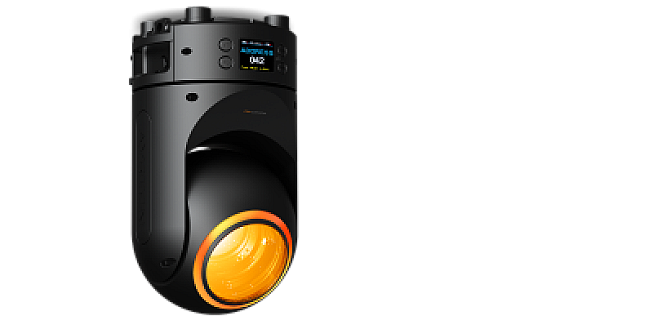

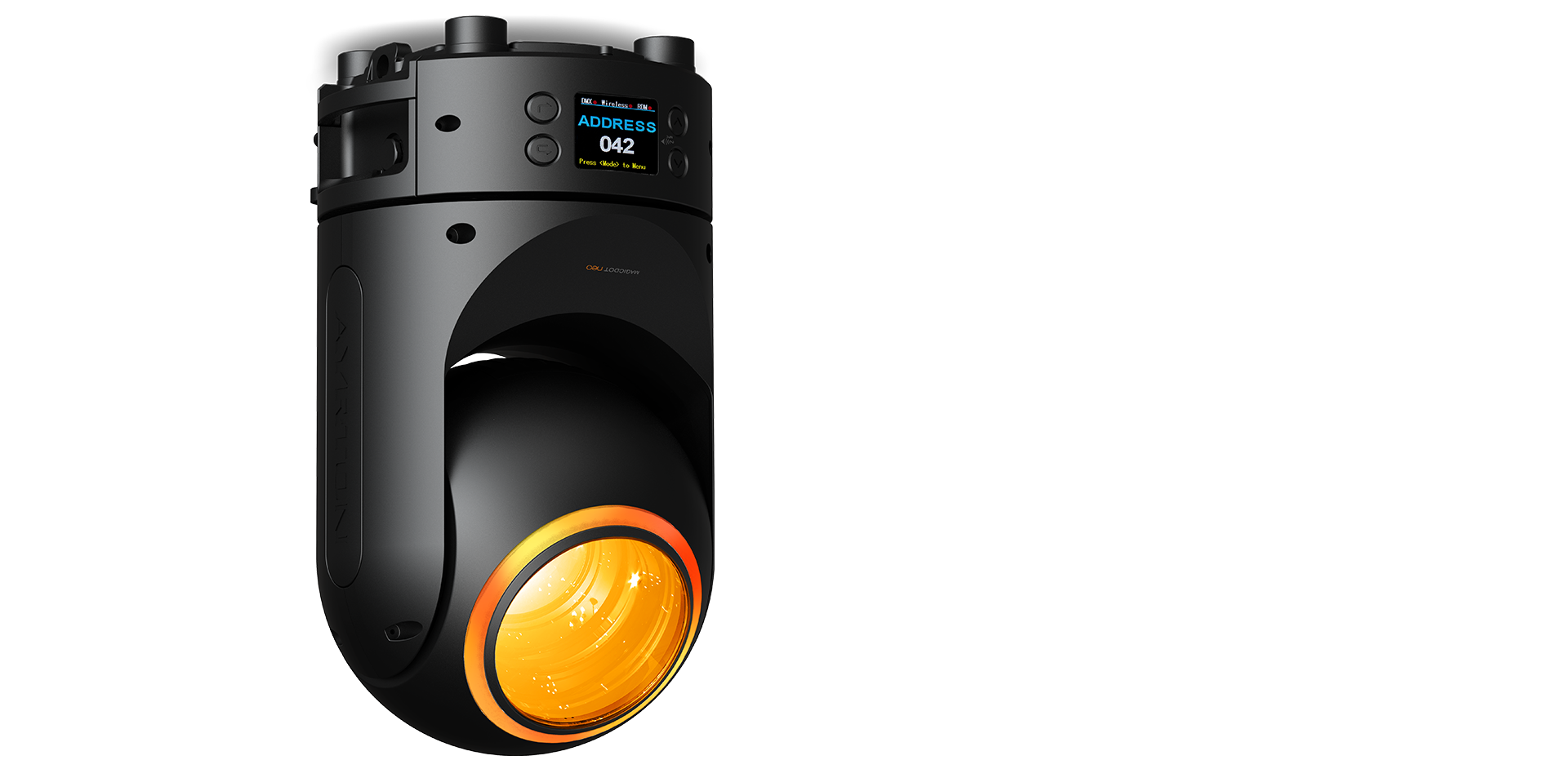

MagicDot Neo

From: AyrtonIDAYRT-6EKX

MagicDot Neo is a compact moving‑head sphere fixture designed for mixed indoor and outdoor use, including saline environments. It integrates a 120 W RGB‑L multi‑chip LED engine with a 100 mm optic and up to 3,000 lm output. The unit provides instant beam‑to‑wash zoom from 3° to 30° and features a 60‑pixel High‑Definition LiquidEffect ring for volumetric visuals, with robust IP65 protection for challenging environments.

Used Equipment

Vendors

Used Sources

Rental

Vendor Location

Rental Sources

Product Details

Brand:Ayrton

Moving Head Type:Hybrid

Light Source Type:Multicolour LEDs

Light Source Wattage:120 W

Light Output at Native Colour Temperature:3 000 lm

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:2 500–8 000 K

Fixture Output Colour Temperature Range:2 500–8 000 K

Colour Correction :Digital Colour Correction

Highest Specified CRI Value:86

Beam Angle Range (w/o accessories):3–30 º

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Beam Iris:No

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw)

Remote Followspot Options:Well-suited for Remote Follow systems (no Camera)

Control and Communication Standards:Art-Net, sACN, DMX512-A, Ethernet, Standalone, RDM

Power Consumption Typical:138 W

Dimensions

Width:19.70 cm

Length:19.70 cm

Height:35.30 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Ayrton
Moving Head Type	Hybrid
Light Source Type	Multicolour LEDs
Light Source Wattage	120 W
Light Output at Native Colour Temperature	3 000 lm
Colour Creation Method	LED Colour Creation
Native Light Source Colour Temperature	2 500–8 000 K
Fixture Output Colour Temperature Range	2 500–8 000 K
Colour Correction	Digital Colour Correction
Highest Specified CRI Value	86
Beam Angle Range (w/o accessories)	3–30 º
Dimmer Type	Electronically
Strobe Effect Type	Electronically
Beam Iris	No
Silent Operation	No
Video Mapping	No
Application Range	Medium (8 m - 25 m throw)
Remote Followspot Options	Well-suited for Remote Follow systems (no Camera)
Control and Communication Standards	Art-Net, sACN, DMX512-A, Ethernet, Standalone, RDM
Power Consumption Typical	138 W
Dimensions
Width	19.70 cm
Length	19.70 cm
Height	35.30 cm
