PMM20

From: AV-LEADERIDAV-L-TSM2
PMM20
PMM20 image 1

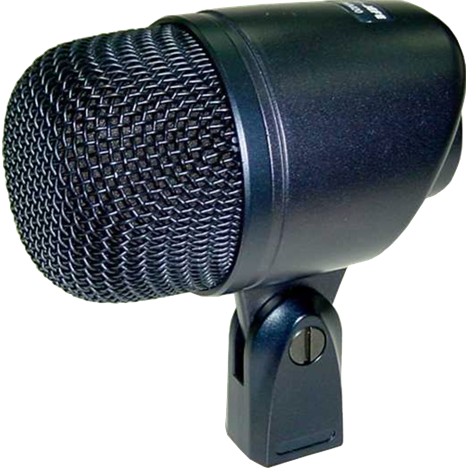

The PMM20 is a professional instrument microphone specifically designed for kick drums and bass instruments. Utilizing a moving coil dynamic transducer with hypercardioid polar pattern, it delivers excellent off-axis rejection and sound isolation. Specifications include 50-16,000 Hz frequency response, -84dB ± 3 dB sensitivity, 50 Ω ± 30% impedance at 1 kHz, and 165dB maximum SPL handling. Constructed with rugged zinc die-cast housing, it features a built-in pivoting stand adapter adjustable to 180 degrees with standard 5/8 inch mounting. The XLR male connector provides reliable connectivity for capturing deep, bold low-frequency sounds in live performance environments.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:AV-LEADER
Transducer Type:Dynamic
Polar Pattern:Hypercardioid
Microphone Form Factor:Drum-Mount
Frequency Response:50–16 000 Hz
Microphone Connector:XLR 3-Pin
Phantom Power 48 V:No
Max. SPL:165 dB
Nominal Impedance (Ohm):50
Manufacturer Code:PMM20

Dimensions

Width:10.92 cm
Length:6.80 cm
Height:11.90 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
