M40W6

From: AudixIDAUDX-4BZN
M40W6
M40W6 image 1

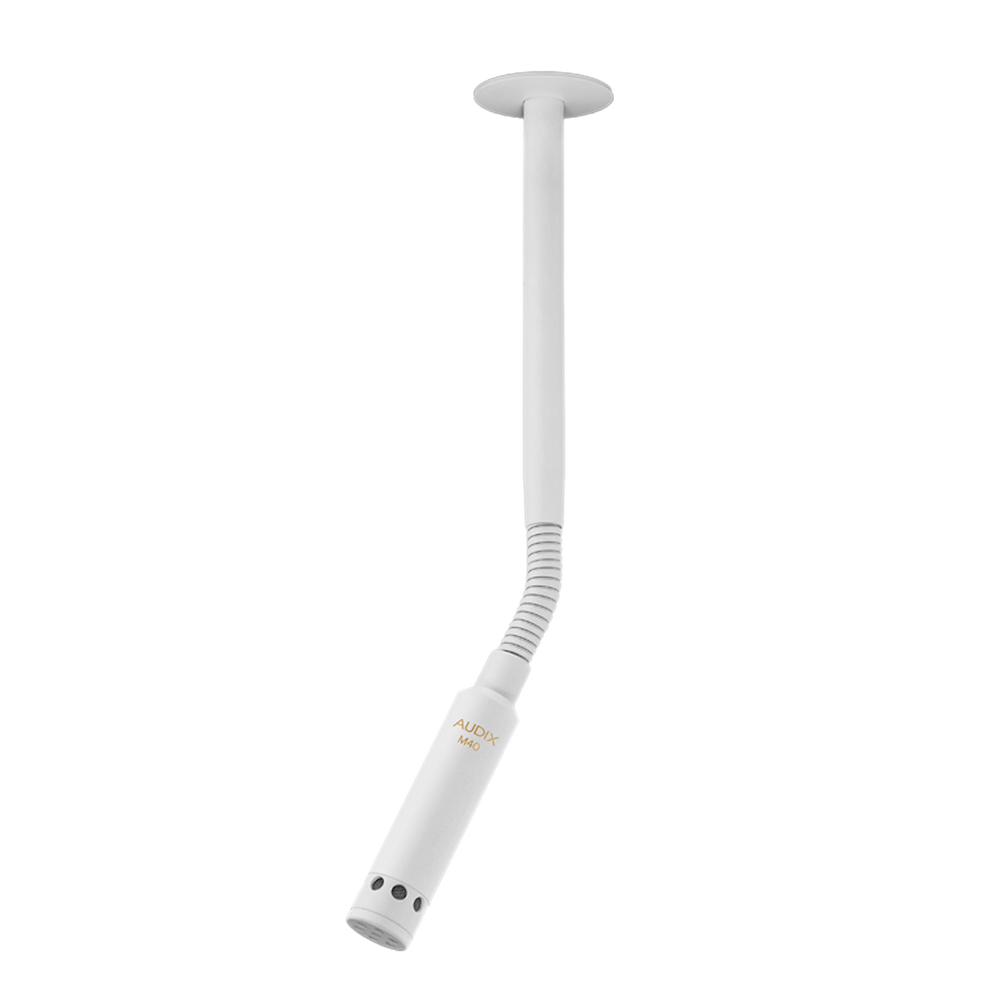

The AUDIX M40W6 is a miniature ceiling-mounted condenser microphone featuring a 6-inch gooseneck and cardioid polar pattern. Designed for high-sensitivity distance miking applications, it incorporates integrated preamp circuitry with immunity to RF interference from cell phones and GSM devices. With a frequency response of 60 Hz - 10 kHz and sensitivity of 37 mV/Pa, this microphone operates on standard 18-52V phantom power. The M40W6 features a 12 mm diameter housing, weighs 20g, and includes a 1-foot integrated cable with terminal block connector. Ideal for video teleconferencing, distance learning, and ambient room miking in permanent installations.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Audix
Transducer Type:Condenser
Polar Pattern:Cardioid
Microphone Form Factor:Gooseneck, Boundary
Frequency Response:60–10 000 Hz
Microphone Connector:Other
Phantom Power 48 V:Yes
Cable Length:0.30 m
Max. SPL:130 dB
Nominal Impedance (Ohm):150
Dynamic Range:108 dB
Manufacturer Code:M40W6
Product Series:M40
Included Accessories:1' integrated mic cable with terminal block connector (CONN170F), mating terminal connector (CONN170M)
Optional Accessories:Metal plenum junction box with seismic and fire safety cable restraint (JBM40)
Weight:0.02 kg

Dimensions

Width:1.20 cm
Height:15.24 cm
