BP28L

From: Audio-TechnicaIDAUDL-3P3V

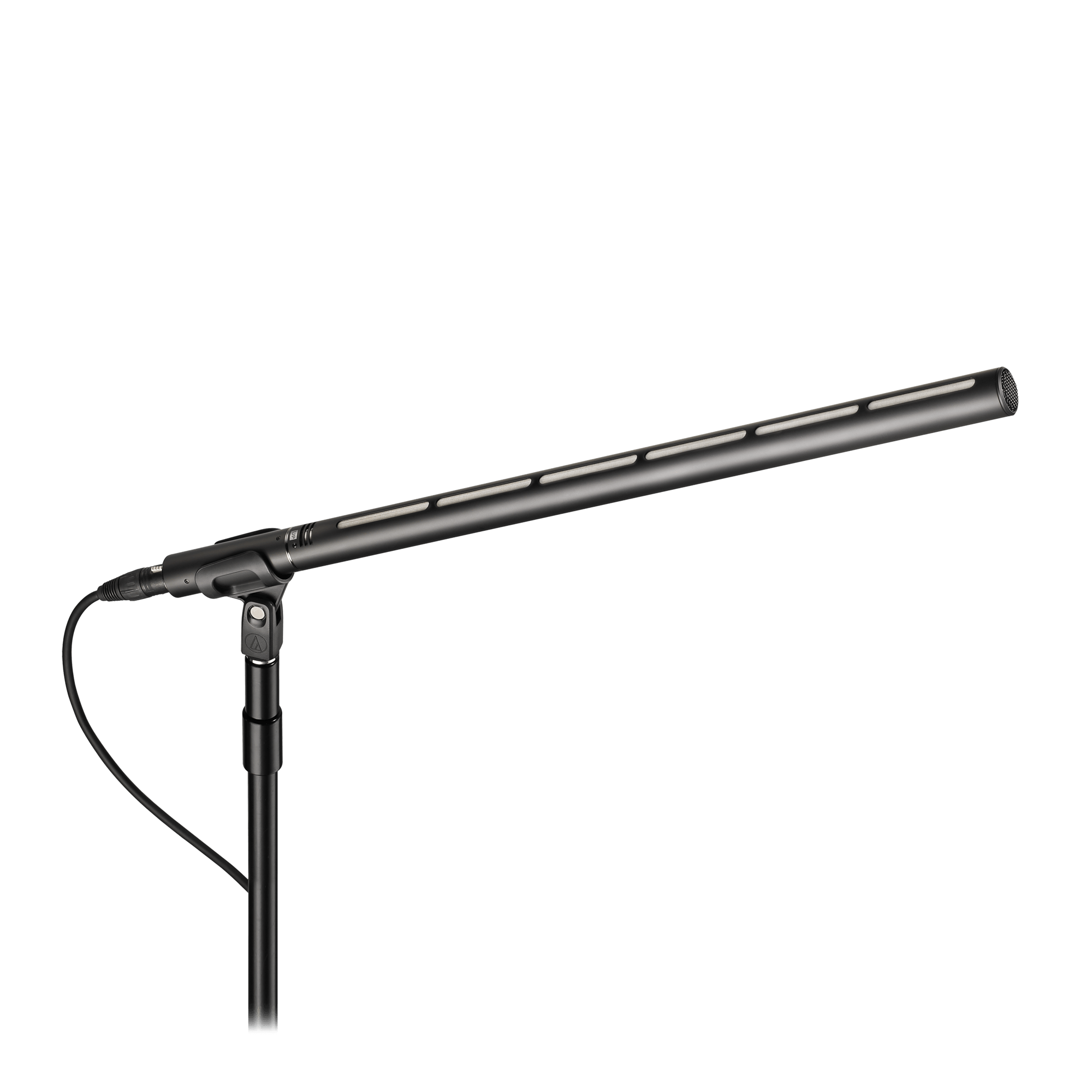

The Audio-Technica BP28L is a professional line + gradient large diaphragm condenser microphone designed for broadcast and film applications. Featuring a large-diaphragm condenser element with optimized circuitry, it delivers exceptional low-noise performance (3 dB SPL) and extremely narrow directional pickup pattern. Transformer-coupled output provides smooth sonic character. Offers high sensitivity (-23 dBV), wide dynamic range (135 dB), and high-SPL capability (138 dB). Rugged housing made of lightweight aluminum alloy with switchable 80 Hz high-pass filter and 10 dB pad. Overall dimensions 567.9 mm long with 28.0 mm maximum body diameter.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Audio-Technica

Transducer Type:Condenser

Polar Pattern:Switchable / Multi-Pattern

Microphone Form Factor:Shotgun, Studio / Large-Diaphragm

Frequency Response:20–20 000 Hz

Microphone Connector:XLR 3-Pin

Phantom Power 48 V:Yes

Max. SPL:138 dB

Attenuation PAD:10 dB

Dynamic Range:135 dB

Manufacturer Code:BP28L

Product Series:BP28

Included Accessories:Windscreen (AT8169), holder (AT8470), stand adapter (3/8"-5/8")

Weight:0.31 kg

Dimensions

Width:2.80 cm

Length:56.79 cm

Height:2.80 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Audio-Technica
Transducer Type	Condenser
Polar Pattern	Switchable / Multi-Pattern
Microphone Form Factor	Shotgun, Studio / Large-Diaphragm
Frequency Response	20–20 000 Hz
Microphone Connector	XLR 3-Pin
Phantom Power 48 V	Yes
Max. SPL	138 dB
Attenuation PAD	10 dB
Dynamic Range	135 dB
Manufacturer Code	BP28L
Product Series	BP28
Included Accessories	Windscreen (AT8169), holder (AT8470), stand adapter (3/8"-5/8")
Weight	0.31 kg
Dimensions
Width	2.80 cm
Length	56.79 cm
Height	2.80 cm
