VR12/60m

From: Alcons AudioIDACNS-J4DY
VR12/60m

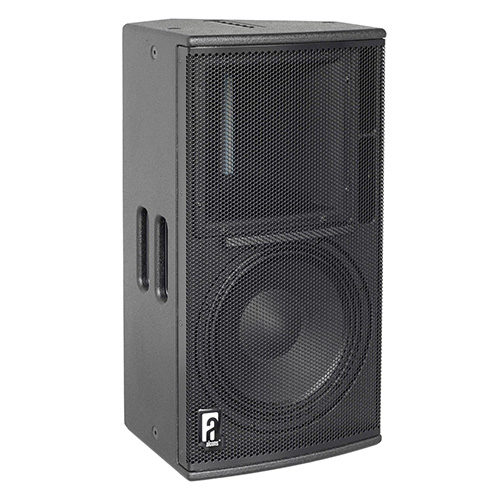

VR12/60m image 1
The VR12/60M is a 2-way passive monitor with 60° x 30° dispersion pattern and mirrored asymmetric cabinet for symmetrical stage monitor pairing. Featuring a 12" Neodymium LF driver and RBN601 pro-ribbon HF driver, it delivers exceptional intelligibility with 1:1 non-compressed linear sound reproduction. With frequency response of 60 Hz - 20 kHz (+/- 3 dB) and nominal impedance of 8 ohms, it requires external amplification via Sentinel series amplifiers. Measuring 67.3 x 35.0 x 34.5 cm and weighing 18 kg, it includes stand mount adapter and fly points for versatile deployment in theatre, A/V and stage monitoring applications.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Alcons Audio
Audio Speaker Type:Point Source Loudspeakers, Stage Monitors
Amplification Type:Passive
Max. SPL:133 dB
Nominal Horizontal Coverage:60 º
Nominal Vertical Coverage:30 º
LF Driver Diameter:12 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Amount of Speakers in Device:2
Components:1x 12" Neodymium LF driver, 1x RBN601 6" pro-ribbon HF driver
Frequency Response:60–20 000 Hz
Nominal Impedance (Ohm):8
Speaker Mounting Options:Pole Mounted, Track-Rail, Flyware Compatible
Housing Colour:Black
Cabinet Construction:Durotect-coated multi-angle asymmetric enclosure; mirrored cabinet and baffle configuration
Power Options:Other
IP Rating:IP20
Manufacturer Code:VR12/60m
Product Series:V-series
Optional Accessories:BRKVR12, BRKVR12HOR, SHEBLTM10, STMT, FC2VR12
Included Accessories:Stand mount adapter, 6-position fly track, fixed mounting points
Compatible with:ALC controller-amplifier, Sentinel3, Sentinel10
Weight:18 kg

Dimensions

Width:35 cm
Length:34.50 cm
Height:67.30 cm
