LR7/120

From: Alcons AudioIDACNS-G39T
LR7/120
LR7/120 image 1

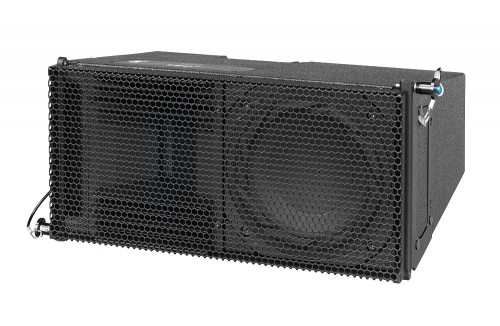

The LR7/120 is a passive 2-way micro-sized line array module designed for short to medium throw applications. It features the RBN401 pro-ribbon driver with exceptional intelligibility and throw, offering patented constant horizontal dispersion of 120° up to beyond 20 kHz. The system uses all-Neodymium drivers for optimal performance-to-weight ratio and includes SIS™ pre-wiring for high damping and reduced distortion when paired with ALC controllers. Its ultra-compact enclosure enables versatile array deployment for both portable and permanent installations in performing arts venues and corporate events where minimal sightline obstruction is required.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Alcons Audio
Audio Speaker Type:Line Array Modules / Tops
Amplification Type:Passive
Max. SPL:129 dB
Nominal Horizontal Coverage:120 º
Nominal Vertical Coverage:15 º
LF Driver Diameter:6.50 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Amount of Speakers in Device:2
Components:1 x 6.5" Neodymium LF driver, 1 x RBN401 4" pro-ribbon HF driver
Frequency Response:74–20 000 Hz
Nominal Impedance (Ohm):16
Speaker Mounting Options:Ground Stacked, Pole Mounted, Flyware Compatible
Housing Colour:Black
Power Options:Other
IP Rating:IP20
Manufacturer Code:LR7/120
Product Series:L-series
Optional Accessories:GRD7, BRK3LR7, BRK5LR7, FC7, FC7/3, PNCLMP
Compatible with:Sentinel3, Sentinel10, LR7B
Weight:8 kg

Dimensions

Width:35.90 cm
Length:27.30 cm
Height:17.30 cm
