MEMORACK 15 M15/63MN

From: ADBIDADBC-J2TN
MEMORACK 15 M15/63MN

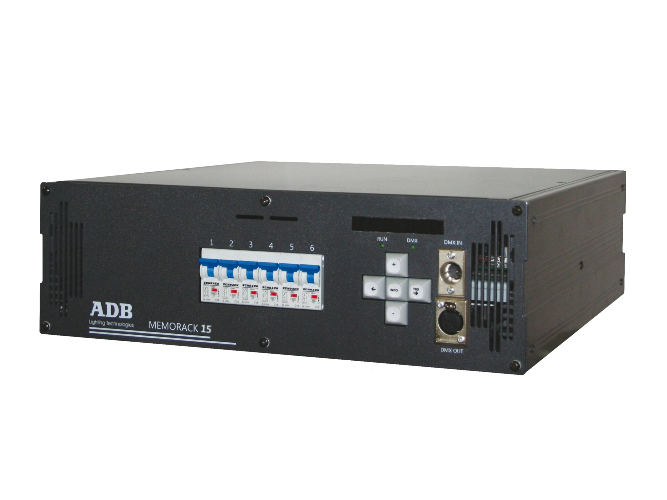

MEMORACK 15 M15/63MN image 1
The MEMORACK 15 is a portable, fully digital 3HE, 19" dimmer pack designed for professional stage, TV studio, and architectural lighting applications requiring high performance, quality, and reliability. This 6 x 3 kW configuration features MCB/1P+N protection and 6 x twin Cebec sockets. It incorporates professional 200 μs filtering, electronic reverse polarity protection at 400 V, and hard-fired thyristors suitable for halogen lamps, capacitive/inductive loads, and transformer-fed low voltage lamps. Equipped with DMX512/A control via XLR 5-pin, a 5-key keypad with LED display, and local storage for 20 lighting cues. Designed for continuous operation at 35°C ambient temperature with forced air cooling through low-noise fans with automatic stop.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:ADB
Type of Dimming / Switching Device:Dimmer Packs
No. of Output Channels:6
Output Power per Channel:3 000 W

Dimmer Rack Features

19'' Rack:Yes
Output-Channel Patching:Yes
Power Distribution:No
Main Power Switch:No
Circuit Breakers:Yes
DMX-Signal Patching:Yes
Control and Communication Standards:DMX512-A
Manufacturer Code:M15/63MN/C
Power Options:400 V, 50 Hz, 3-Phase, 230 V / 240 V, 50 Hz
Weight:17 kg

Dimensions

Width:54 cm
Length:48.40 cm
Height:13.30 cm
