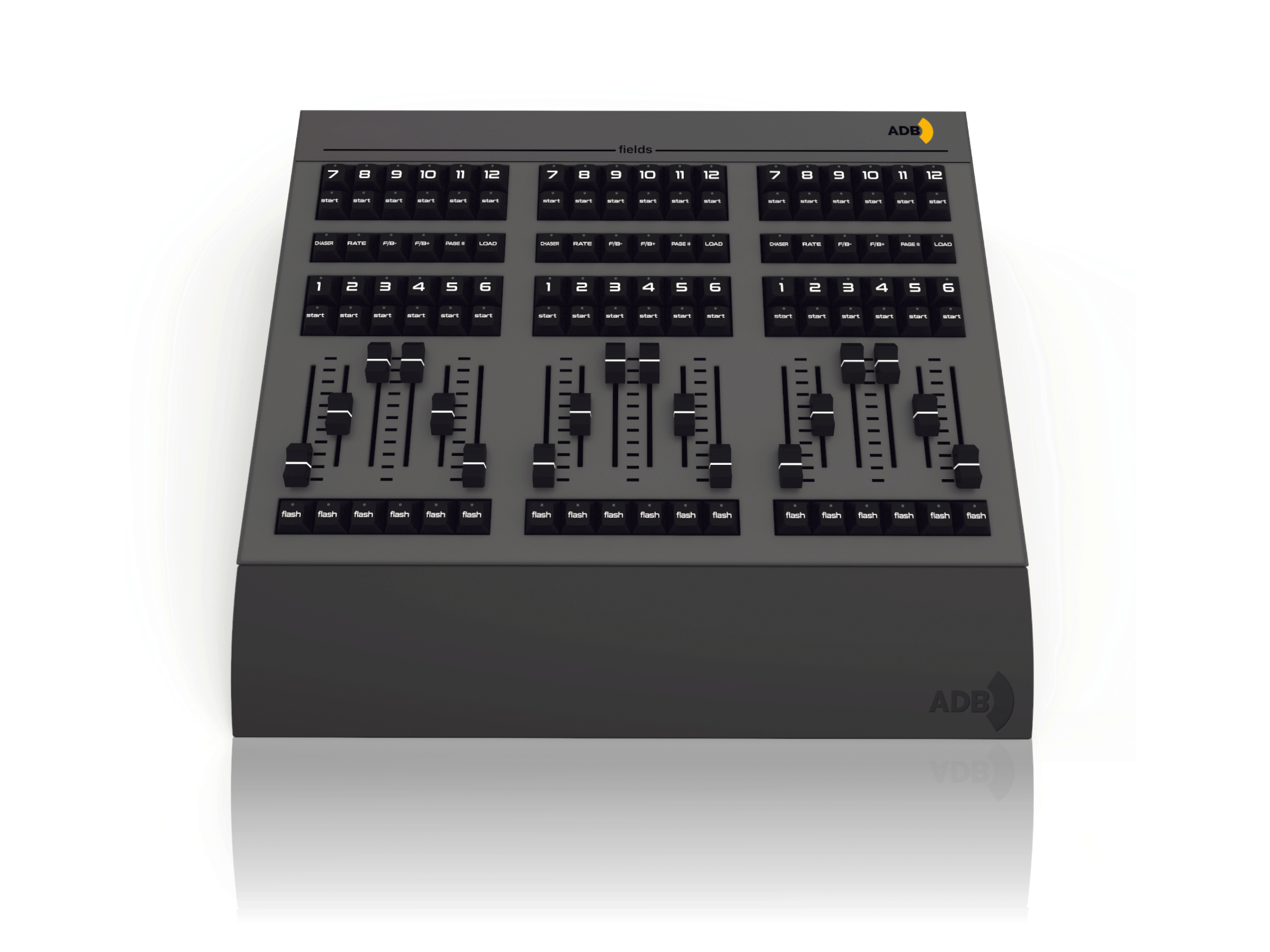

IMAGO WING

From: ADBIDADBC-9TQR

The IMAGO WING is a console extension for the IMAGO lighting system, adding 18 physical subfaders and 18 executor keys. It operates via USB with ADB's Hathor software, supporting 32 DMX universes (16,384 parameters) over Ethernet using Art-Net, sACN, Sandnet, Pathport, and Shownet protocols. Designed for portability, it measures 41.5 × 30.3 × 8.5 cm, weighs 2.65 kg, and includes universal AC input (100–240 V). Features physical faders, offline programming capability, and compatibility with Hathor-based consoles for touring, theater, and temporary installations.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:ADB

Lighting Control Device Type:Console Extension / Wing

No. of DMX Universes :32

Amount of Faders:18

Control and Communication Standards:MIDI, OSC

Control System Features:Offline Programming Support, Physical Faders, Wing Compatability

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:2.65 kg

Dimensions

Width:41.50 cm

Length:30.30 cm

Height:8.50 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	ADB
Lighting Control Device Type	Console Extension / Wing
No. of DMX Universes	32
Amount of Faders	18
Control and Communication Standards	MIDI, OSC
Control System Features	Offline Programming Support, Physical Faders, Wing Compatability
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	2.65 kg
Dimensions
Width	41.50 cm
Length	30.30 cm
Height	8.50 cm
