IS5c

From: AdamsonIDADAR-94DJ

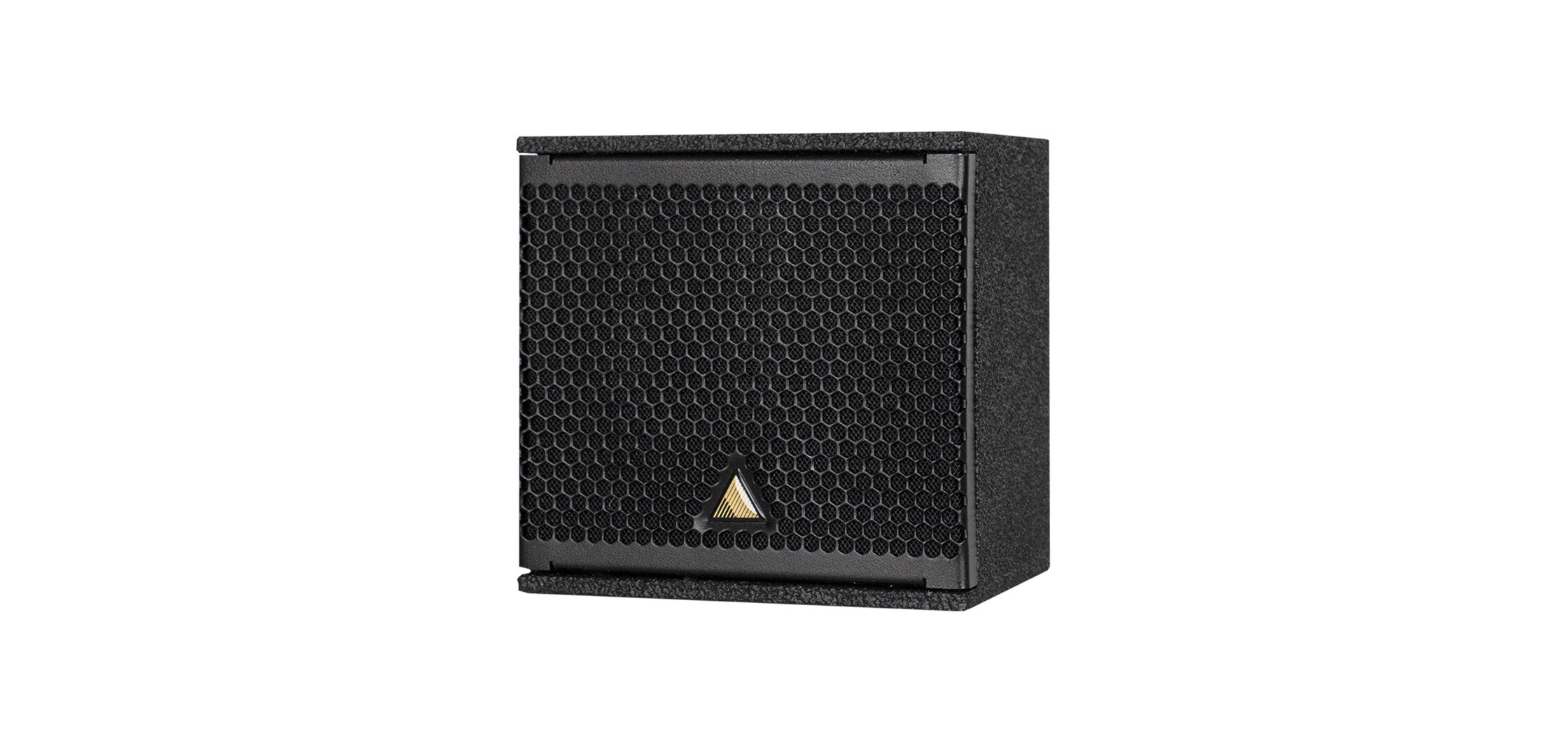

IS5c
IS5c image 1
The IS5c is an ultra-compact, passive 2-way coaxial loudspeaker with a 100° conical dispersion pattern. It features a 5" low-frequency transducer coaxially combined with a 1.4" dome compression driver, producing linear, high-resolution audio from 95 Hz to 20 kHz. Constructed from marine-grade birch plywood and reinforced with aircraft-grade aluminum and steel, it includes two Speakon™ NL4 connectors and a 2-point barrier strip for signal input. Rigging points with 3/8" threaded inserts on the top and bottom enable secure flying or stacking. Suitable as a fill speaker or standalone solution in applications such as performing arts centers, conference rooms, houses of worship, and nightclubs. The system handles 125 W AES power at a nominal 16 Ω impedance, with a peak SPL of 123 dB.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Adamson
Audio Speaker Type:Point Source Loudspeakers
Amplification Type:Passive
Max. SPL:123 dB
Nominal Horizontal Coverage:100 º
LF Driver Diameter:5 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Amount of Speakers in Device:2
Components:5" LF / 1.4" Dome Compression Driver
RMS Power Handling:125 W
Frequency Response:95–20 000 Hz
Nominal Impedance (Ohm):16
Speaker Mounting Options:Ground Stacked, Flyware Compatible
Cabinet Construction:Marine-grade birch plywood with aircraft-grade aluminum and steel
IP Rating:IP20
Manufacturer Code:IS5c
Product Series:IS-Series
Optional Accessories:IS5c Tilt Bracket (934-0046)
Weight:2.25 kg

Dimensions

Width:15.30 cm
Length:13.40 cm
Height:14.90 cm
