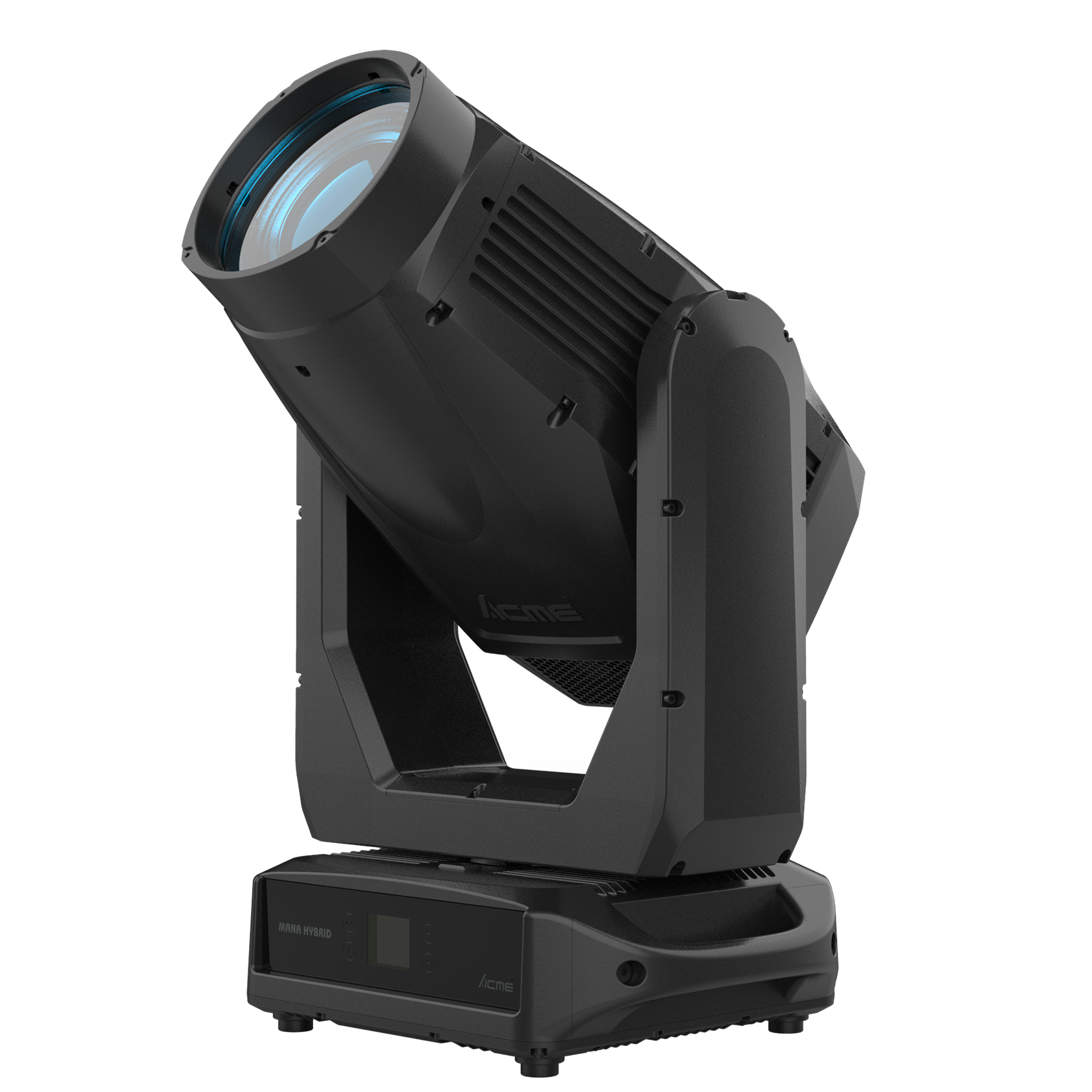

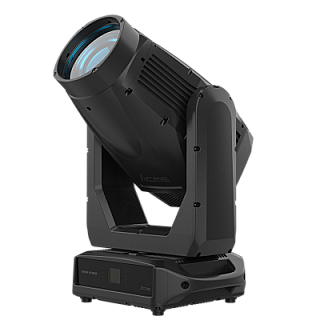

MANA HYBRID

From: ACME LightingIDACME-P4MN

The MANA HYBRID is a moving hybrid lighting fixture featuring a 600W LED engine with a 170 mm frontal lens. It delivers a total output of 21,000 lumens with a beam angle range of 2°-45°. The fixture provides variable color temperature adjustment from 2,700K-7,000K with standard CRI Ra>70 and HCRI mode achieving Ra≥90. It includes linear CMY color mixing, 13 static gobos, 8 rotating gobos, graphic animation wheel, and two combinable frost filters (light and medium). With an IP66 rating, it's suitable for both indoor and outdoor applications. The fixture weighs 30.5 kg with dimensions of 380×284×658 mm.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:ACME Lighting

Moving Head Type:Hybrid

Light Source Type:Cold White LED Light Engine

Light Source Wattage:600 W

Light Output at Native Colour Temperature:21 000 lm

Colour Creation Method:Fixed Colour Filters, CMY Filter Mixing

Native Light Source Colour Temperature:7 000 K

Fixture Output Colour Temperature Range:2 700–7 000 K

Colour Correction :CTO Filter, variable (cold to warm)

Highest Specified CRI Value:90

Frost Effects:2 Frost Effects

Beam Angle Range (w/o accessories):2–45 º

IP Rating:IP66

No. of Fixed Colour Filters:7

No. of Fixed Colour Wheels:1

No. of Fixed Gobos:13

No. of Fixed Gobo Wheels:1

No. of Rotating Gobos:8

No. of Rotating Gobo Wheels:1

No. of Animation Wheels:1

No. if Prisms:2

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Beam Iris:No

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Control and Communication Standards:MIDI, DMX512-A, sACN, OSC

Power Consumption Typical:910 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Manufacturer Code:XA 600 BSW IP

Weight:30.50 kg

Dimensions

Width:38 cm

Length:28.40 cm

Height:65.80 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	ACME Lighting
Moving Head Type	Hybrid
Light Source Type	Cold White LED Light Engine
Light Source Wattage	600 W
Light Output at Native Colour Temperature	21 000 lm
Colour Creation Method	Fixed Colour Filters, CMY Filter Mixing
Native Light Source Colour Temperature	7 000 K
Fixture Output Colour Temperature Range	2 700–7 000 K
Colour Correction	CTO Filter, variable (cold to warm)
Highest Specified CRI Value	90
Frost Effects	2 Frost Effects
Beam Angle Range (w/o accessories)	2–45 º
IP Rating	IP66
No. of Fixed Colour Filters	7
No. of Fixed Colour Wheels	1
No. of Fixed Gobos	13
No. of Fixed Gobo Wheels	1
No. of Rotating Gobos	8
No. of Rotating Gobo Wheels	1
No. of Animation Wheels	1
No. if Prisms	2
Dimmer Type	Electronically
Strobe Effect Type	Electronically
Beam Iris	No
Silent Operation	No
Video Mapping	No
Application Range	Medium (8 m - 25 m throw), Large (20 m - 40 m throw)
Control and Communication Standards	MIDI, DMX512-A, sACN, OSC
Power Consumption Typical	910 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Manufacturer Code	XA 600 BSW IP
Weight	30.50 kg
Dimensions
Width	38 cm
Length	28.40 cm
Height	65.80 cm
